تغير كارت الشاشة Dell Dimension 4600


Image 1/1: Locate the case cover latch on the back of the computer.
Image 1/1: Using your index finger, slide and hold the cover latch down.
Image 1/1: Grab the edge of the panel and slide it away from the case until it is removed.
Image 1/1: Lay the computer flat so that you are looking down on all of the components.
Image 1/1: Locate the Video Card and the screw attached to the Video Card as shown in the picture.

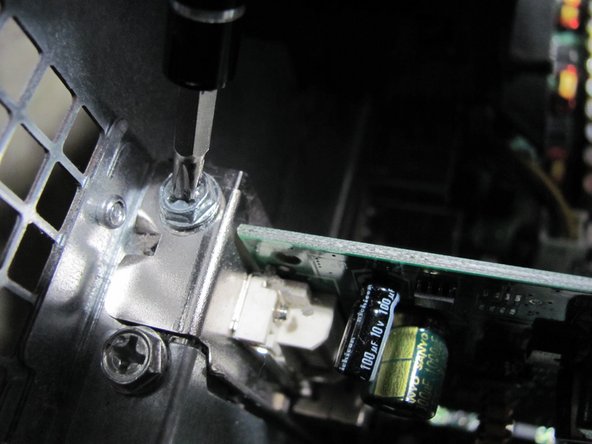

Image 1/1: Remove the 8.9 mm screw by using a Phillips #2 screw-driver.

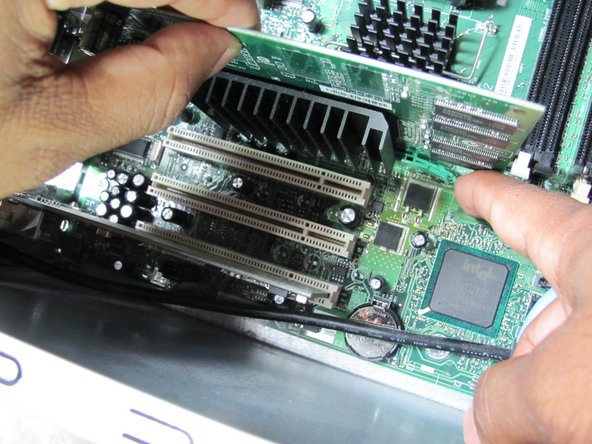

Image 1/1: Push down on the green clip located by the bottom right corner of the video card while simultaneously pulling the card up with your other hand.Image 1/1: Pull the remainder of the card up and out of it's slot.
